PCCP Pipe Steel Cylnider Welder


PCCP Pipe Steel Cylinder Welding Machine

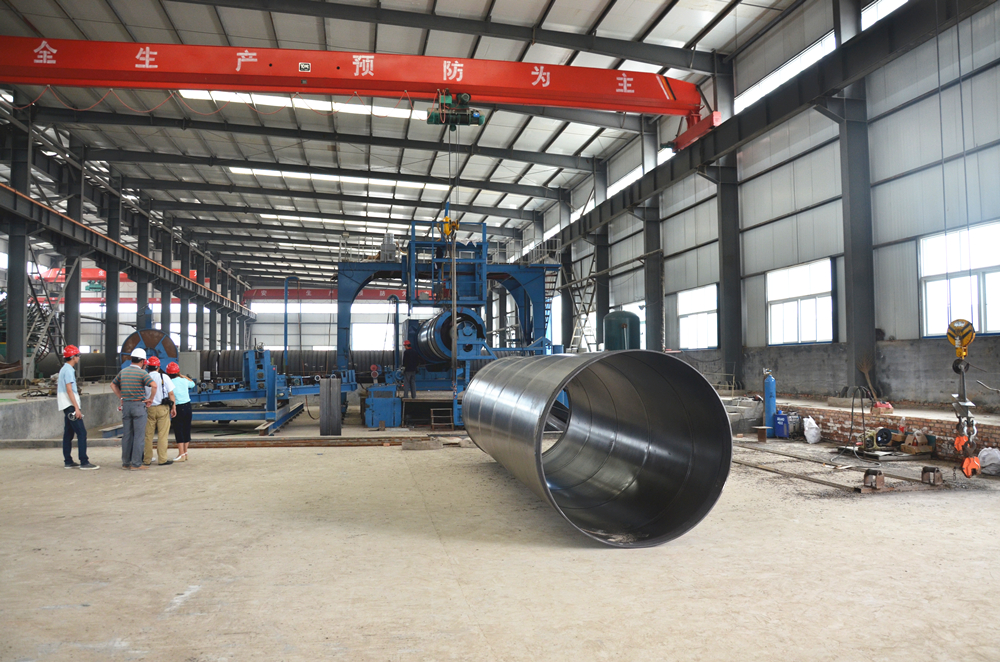

Prestressed Concrete Cylinder Pipe PCCP Steel Cylinder Welder_121.jpg

1.DN600-1600*6000mm Steel Cylinder Spiral Welding Machine

1.1The price including United States DC-600 Lincoln welding machine and steel belt feeding system/control panel. welding speed:0.5-2.5m/min.The price not including tube core.

1.2Application for GB/T5213-2008 standard provisions:thickness1.5-2mm,width 1250mm oil free cold rolled steel plate.

1.3PLC control, encoder tracking service,excellent control, forming the diameter deviation is less than 1 mm / 6000 mm.

1.4Use plasma cutting machine to cut automatic.

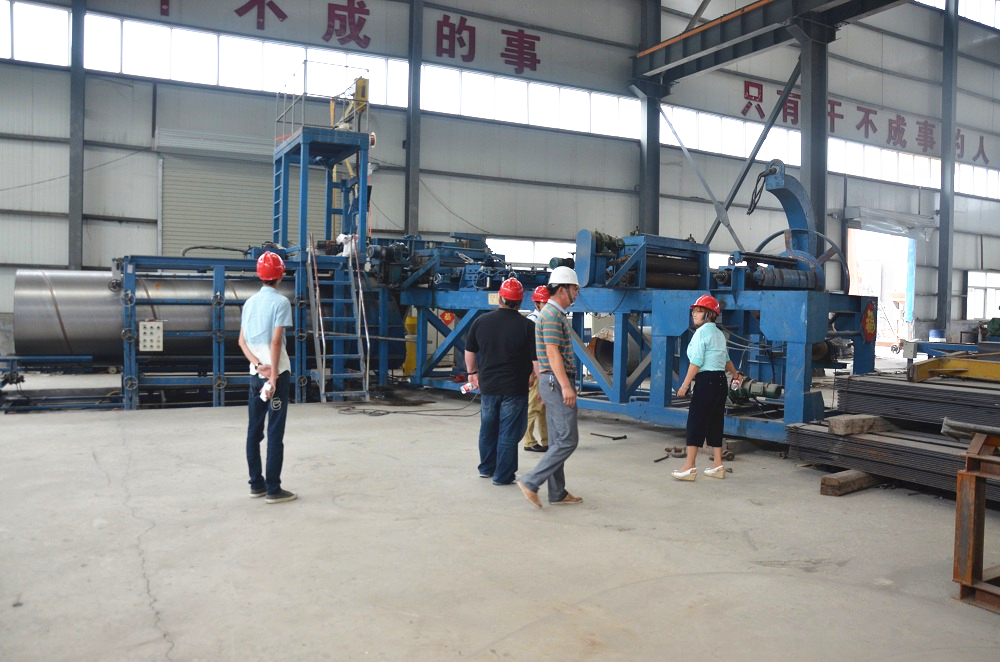

PCCP Pipe Steel Cylinder Welding Machine13.jpg

2.DN1400-3200*6000mm Steel Cylinder Spiral Welding Machine

2.1.he United States Lincoln welding machine, welding speed:0.5-2.5m/min

2.2Application for GB/T5213-2008 standard provisions:1.5-2.5mm oil free cold rolled steel plate.

2.3PLC control, encoder tracking service,excellent control,

2.4Main have electric control system/open-book leveling plate mechanism/door frame/rive structure/welding equipment frame structure/ welding machine/welding frame structure recovery unit/pneumatic mechanism, etc

PCCP Pipe Steel Cylinder Welder12.jpg

Our factory is a specialized manufacturer and exporter of PCCP Pipe Production Line/Concrete Pipe Making Machine/Concrete Pipe Molds in China for years, we supply and design PCCP Pipe Production Line/Concrete Pipe Making Machine/Concrete Pipe Moulds with over decade's of experience.
